Technicolor Com1000 Pro:Idiom HD Headend Systems for DIRECTV

Technicolor COM1000 Pro:Idiom HD Headend Systems for DIRECTV

Com1000 Pro:Idiom HD headend system

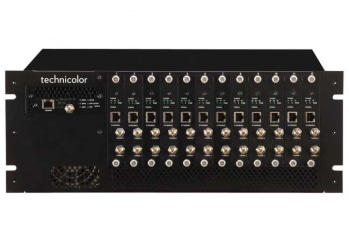

The Technicolor Com1000 Pro:Idiom HD Headend System

The Technicolor COM1000 was a revolutionary HD headend system when it was introduced in 2009 and changed the way TV for hotels was provided in hotels with over 250 rooms. Over the past 4 years DIRECTV and Technicolor have made many improvements to make the COM1000 headend system even more more stable and cost effective.




The NEW DIRECTV COM2000 HD Headend from Technicolor

Technicolor COM2000 HD Headend System

In June of 2014 DIRECTV and Technicolor announced the New COM2000 system. The COM2000 brings along with it the nearly plug and play platform and stability of the COM1000 with some outstanding new features.

  • The COM2000 is about 1/2 the cost of a similarly configured COM1000
  • The COM2000 uses just 225W – a fraction of what you current headend uses
  • The new COM360 chassis takes up just 3U of rack space – 25% less
  • The new COM46-FLX receiver cards give you 8 HD or SD receivers on a single card

Plus many more new features and benefits that make HD TV conversion easy and more cost effective than ever before.

For more information visit our DIRECTV COM2000 HD Headend page
Call 800-951-1979 or 505-296-9423
Or email us at Barry@itsallaboutsatellites.com







The Future of Free to Guest Video is on DIRECTV HD TV

Com1000 Pro:Idiom HD headend system

Com1000 Provides Affordable HD

Before the DIRECTV Com1000, upgrading to HD had been an expensive and disruptive conversion for large properties (over 250 rooms) and hotels that do not have home run wiring. The Technicolor Com1000 HD Headend gives you an affordable option to rewiring your property.

DIRECTV Com1000 Headend

The Technicolor COM1000 Pro:idiom HD Headend System provides you with the very best option in Hotel Television Systems for properties that do not currently have or are unable to install “home run” wiring.

The COM1000 Headend is designed to lower the per channel costs of delivering HD television programming, decrease the space needed, and add more HD channel capability to Hotels, Resorts, Assisted Living and Senior Care Facilities, Hospitals, Dormitories and other temporary dwelling properties.

The Com1000 Headend System Delivers DIRECTV HD Programming to Hotel Guests

The COM1000 Headend system provides DIRECTV Hotel Television Systems a stable QAM modulated RF platform to make HD more affordable for hotel owners today, and more expandable for tomorrow.

The DIRECTV COM1000, developed in partnership with Technicolor, is a leap forward in technology platforms to deliver DIRECTV’s HD programming to Multi-Client properties like hotels, resorts & assisted living facilities.

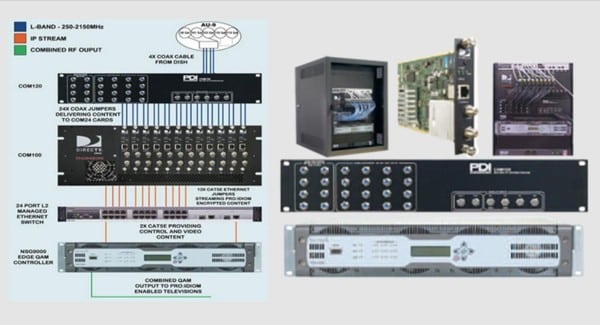

What Does It Take to Get HD Programming Into Your Rooms?

HDTV Programming:
DIRECTV HD video signal sent from a DIRECTV satellite to an installed satellite dish at a hotel property.

Pro:Idiom Transcoder:
The Pro:Idiom transcoder is a modified DIRECTV receiver that converts high-definition DIRECTV signal into to a digital format that can be delivered through the hotel TV distribution network.

Digital video is an exact replica of its original source without degradation and as such is easily pirated without encryption. The content owners such as ESPN, HBO, etc… now require that the signal be encrypted in hotel properties all the way to the television.

LG’s Pro:Idiom technology is a digital video content security system (DRM) designed to encrypt the signal so that only authorized Pro:Idiom HDTVs or televisions with a decryption box (set top or internal) can decode the signal and display the video on its screen. The Pro:Idiom transcoder is built into the head end, one transcoder per channel.

Com1000 Pro:Idiom HD Headend System for Hotels from DIRECTV

Digital QAM Modulator:
A QAM Modulator changes the frequency of the video signal so that each channel can be viewed on the desired channel number. For example, the QAM modulator could change the frequency for ESPN (normally DIRECTV channel 206) so that it can be viewed on channel 5 at your property. The QAM modulator is also located in the hotel headend system.

Pro:Idiom TV capable of HDTV resolution:
Pro:Idiom enabled HDTVs have the ability to decode the encrypted signal sent from the Pro:Idiom Transcoder so that the content can be seen by your customers Identification Module (IDM).

Pro:Idiom HDTVs also have an insertion point for the ID Module, which marks each individual room’s video signal with a unique and traceable key code for additional content security. Broadcast stations such as ESPN HD, HBO HD and SHOWTIME HD require this component in order to protect their content from piracy.

Does Your Hotel Need a Com1000 Headend?

For newer hotels and older properties with newer wiring, often the best option for providing HD TV is the DIRECTV Residential Experience for Hotels. Its provides a more robust channel availability, a TV viewing experience more like the one your hotel guests are used to at home, and added functionality for the hotel property.

The very best way to determine if your hotel needs a Com1000 headend system to deliver HD programming to your guests is to have an experience, certified technician do a site survey of your property.

They will be looking for several things –
The type of wiring your TV system currently has:
Ideal – home run type wiring with no splitters or splicing, RG-6 Coax Cable rated to 3 gHZ

The Distance for Each Wiring Run :
Ideal – A maximum of 200 feet of distance from the distribution points to the furthest TV receiver

The Type of Connectors in the Wall Plates :
Ideal – Compression Connectors in high frequency wall plates.

If your property meets all the above requirements and you have fewer than 1000 rooms, you may be a good candidate for the DIRECTV Residential Experience.

If those are not available in your property they will determine whether it is cost effective to upgrade your cabling or if a DIRECTV Com1000 Headend system from Technicolor would be your best option.

Call 800-951-1979 or 505-296-9423 Today
to
schedule a FREE Site Survey for your Hotel

For more information about the DIRECTV Com1000 HD Headend system
